An engineering story · 1939 to today
Designed for a world at war.
Still bringing people together.
One kit.
Many crossings.
The Bailey’s innovation was a complete system. Steel panels could be carried by a small team, joined at the riverbank, and repeated to suit the crossing. Its history belongs as much to factory workers, drivers and engineers as to its designer.
From the IWM collectionThe timeline
The foundations
The Allies entered the war with earlier bridging systems, including the Inglis and Unit Construction bridge. Heavier mechanized forces needed a more adaptable crossing. Bailey grew from this engineering problem and from earlier bridge designs.
The war years
At the experimental bridging establishment in Christchurch, Donald Bailey and his colleagues developed a system of reusable panels. Add panels along the riverbank to gain length; add trusses alongside or above to change the configuration. Photograph: Bailey studying a model in 1944.
The war years
The Royal Engineers first used Bailey bridging operationally in November 1942. The achievement was a system: manageable components, simple field joints and a bridge that could be assembled on one bank and launched across the gap.
The war years
The US Army published its Bailey manual in September. Steel fabricators supplied complete sets, using gauges intended to make parts interchangeable. Small production differences still caused serious compatibility problems between American and British equipment.
The war years

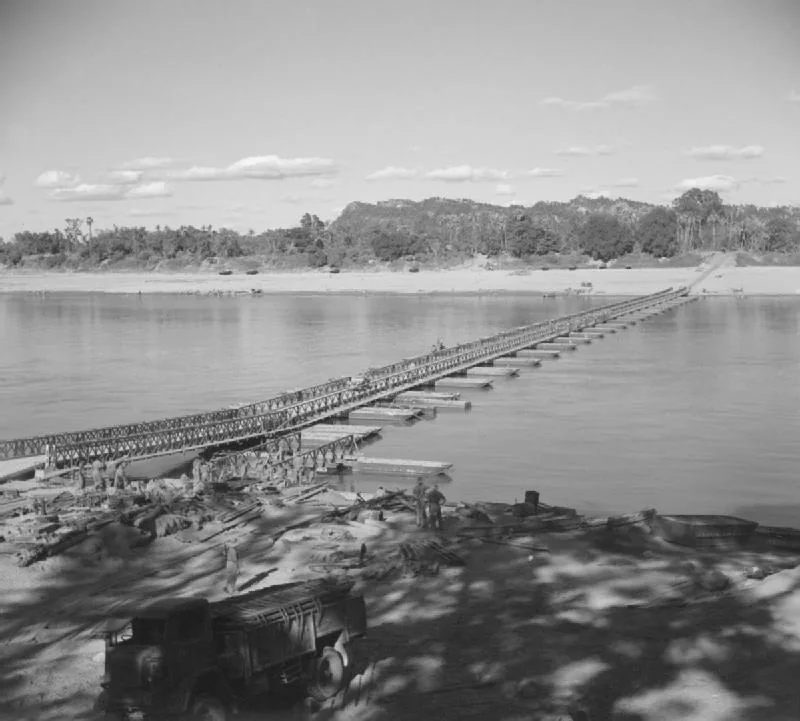

Near Kalewa in Burma, Bailey panels formed a long floating crossing over the Chindwin. The pontoons carried the intermediate loads: this was a series of supported sections, not one enormous clear span.
The war years

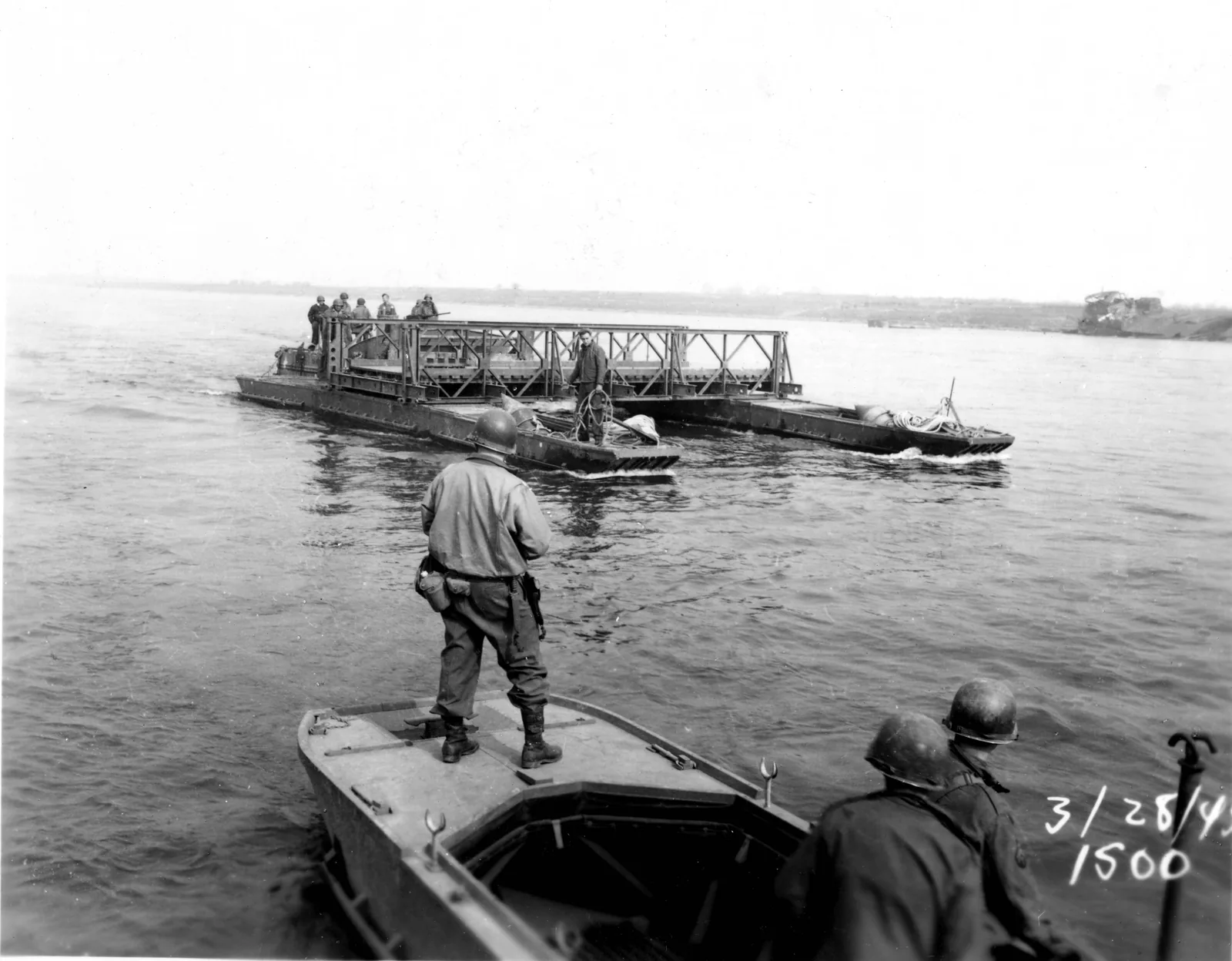

On 28 March, American engineers moved a floating Bailey section into position near Wesel. Elsewhere on the Rhine, the Canadian Melville crossing reached 1,348 ft overall. Boats, roads, supply trucks and prepared banks made such crossings possible.
An enduring idea

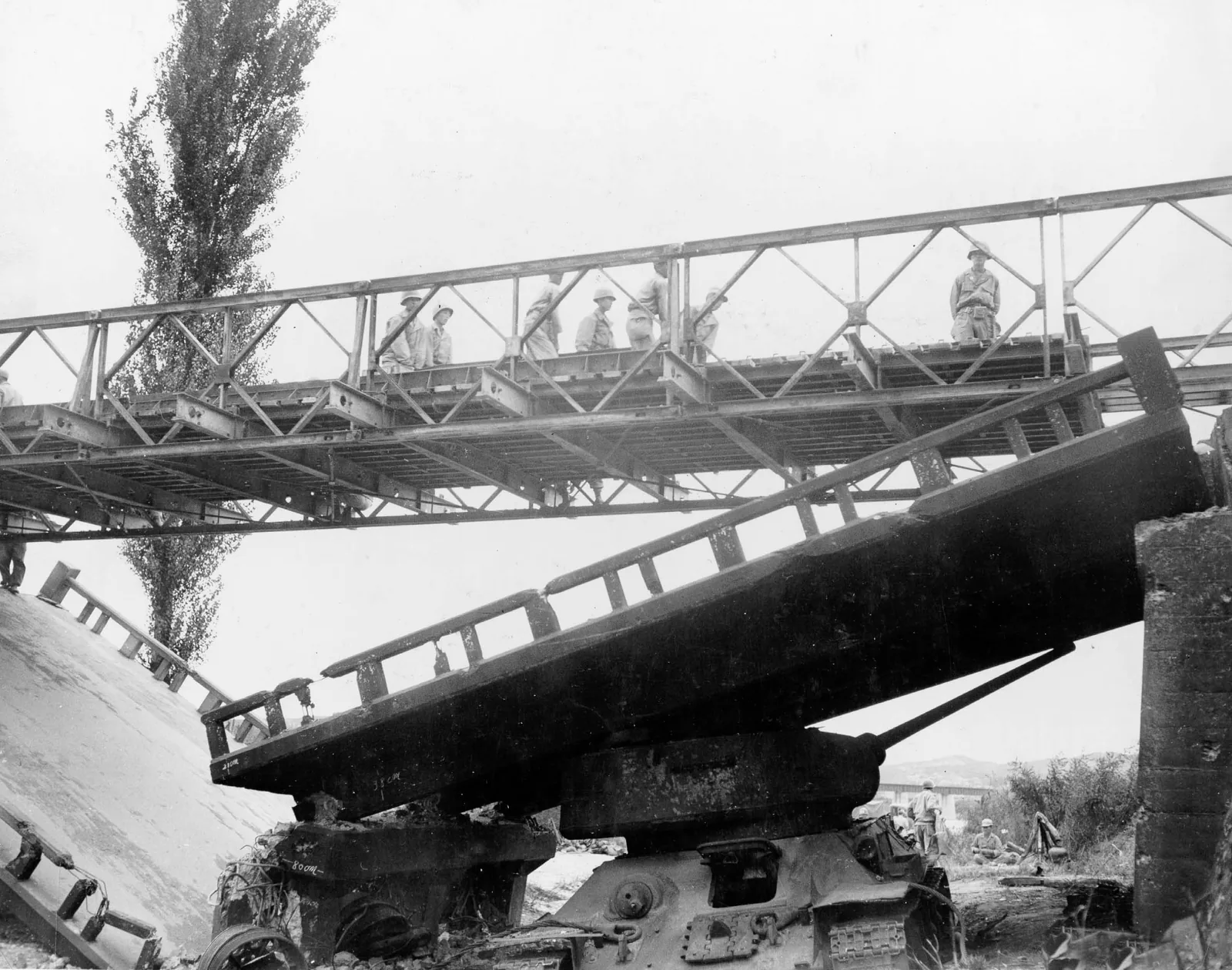

Korean Army engineers built a Bailey above a ruined bridge near the Naktong on 27 September 1950. The photograph captures the lasting advantage: manufactured components could restore a route while the destroyed structure still lay below.
An enduring idea
New Zealand deployed Bailey bridges after Cyclone Gabrielle. The Waikare crossing opened on 14 May and Hikuwai on 15 June. Waka Kotahi traces its bridge stocks to purchases after the Second World War; later equipment and modern installation methods have continued the idea.
Around the world
A short gap, a wide river, a broken road.
Different challenges called for different arrangements.
Representative wartime river gap
A single-single has one panel truss on each side and one storey. Every bay adds 10 ft. The exhibit’s short span is a teaching reconstruction, not a named historical bridge or a load rating.
Double-single / double-double
The first word counts parallel trusses on each side; the second counts storeys. Double-double means two trusses wide and two panels high on each side. Strength and allowable span depend on the complete configuration and loading.
Chindwin River · Burma
The Kalewa photograph shows repeated Bailey sections supported by pontoons. Floating supports made a broad river crossing possible without treating the whole river width as an unsupported beam.
Rhine River · near Wesel, Germany
US engineers maneuvered prefabricated spans on pontoons into the crossing. This used the same modular principle with a different support and assembly method from the bank-launched fixed bridge.
Emmerich · Germany
The Canadian Melville floating bridge was 1,348 ft long overall. The engineer account records 450 truckloads of stores. Length came from repeated supported sections and a large logistical operation.
Hikuwai River · New Zealand
An 85 m temporary Bailey restored State Highway 35 after Cyclone Gabrielle. Modern foundations, site preparation and lifting equipment are part of this story; the 1943 manual does not describe this modern bridge.
The first two examples explain configurations. Named historical crossings are documented separately; a floating bridge’s overall length is not the length of an unsupported span.
